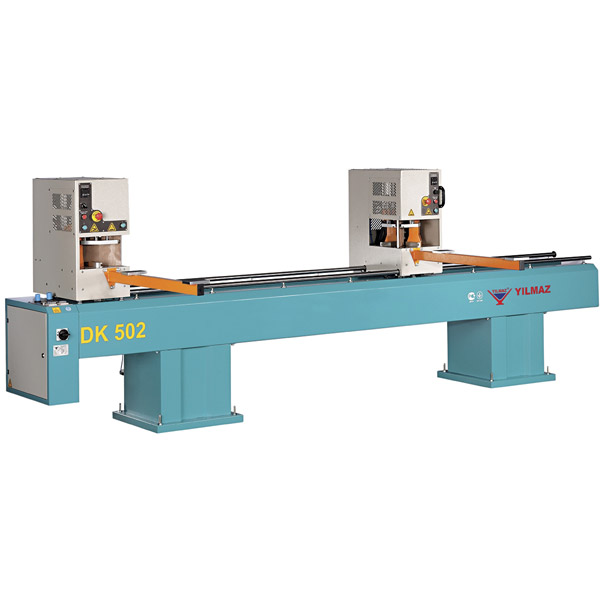

DK 502 – Double Corner Welding Machine (Angled)

SKU: DK 502 - Double Corner Welding Machine (Angled) Categories: ,
General Details

Machine is ideal for welding process of PVC plastic profiles at two corners.

  • Fully automatic two corner welding of PVC window profiles at an angle of 90°
  • Possibility of precise welding and cleaning of profiles between 30°-180° on the left head
  • All parameters such as melting and welding time, welding pressure are set on the control panel independently
  • Continuous precision of welding quality by means of linear rails
  • Welding two corners of window frames or sash profiles are carried out in one cycle
  • User friendly with practical Teflon change feature by means of the roller system
  • Saving of time by means of most practical mold change system in the market
  • Capable of adjusting the clamp and weld ing pressure according to the profile type
  • Adjusting the heat between 0-300°C via electronic thermostat
  • Practical setting of standard (2 mm) or seamless (0.2 mm for free of flashes) welding options
  • The movable right unit moves manually and left welding unit is fixed at 90°
  • After clamping the profiles, the welding is carried out automatically
  • The moveable right welding unit is equipped with a brake system
  • For safety reasons, the clamp pistonsoperate with low pressure
  • Equipped with two pcs. of support arms


STANDARD ACCESSORIES

  • 1 set of sash welding mold


OPTIONAL ACCESSORIES

  • Special welding molds on demand

DK 502 – Double Corner Welding Machine (Angled)
