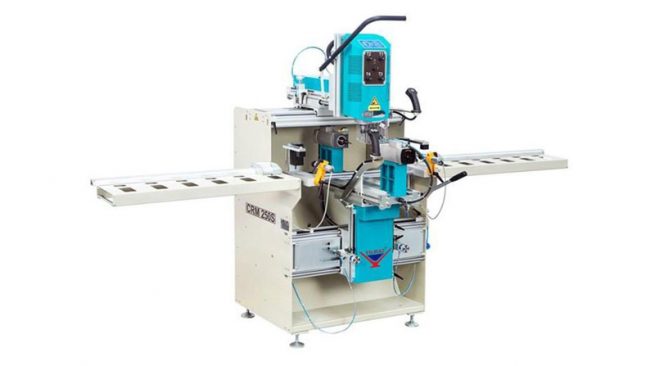

CRM 250 S – Spindle Copy Router Machine

SKU: CRM 250 S - Spindle Copy Router Machine Categories: ,
General Details

It is designed to operate quickly and precisely lock’s holes on aluminum profile, without releasing the workpiece.

  • Copy router with 1 vertical and 2 horizontal spindle motors ( 3 x 1.1 Kw 12.000RPM)
  • Designed to perform quickly and precisely lock’s holes on 3 sides of the aluminum profile without releasing the workpiece
  • Pneumatic 2 x horizontal and 2x vertical clamps
  • Horizontal and vertical pneumatic tracers with 3 diameters Ø 5, Ø 8, Ø 10 mm
  • Horizontal & vertical templates with standard figures for Aluminum and PVC profiles.
  • Smooth movement, high precision and great sensitivity provided with gas spring and ergonomic handles
  • 1 m of roller support table at the right (with ruller) and left side
  • Manualy adjustable profile stops 5 placed on the right and left that allows the work piece to be positioned properly in the machine.
  • Spray tool lubrication system



OPTIONAL ACCESSORIES

  • Additional router bits with Ø5mm, Ø8mm and Ø 10mm
  • Additional collets with, Ø 8 and Ø10
  • Special templates

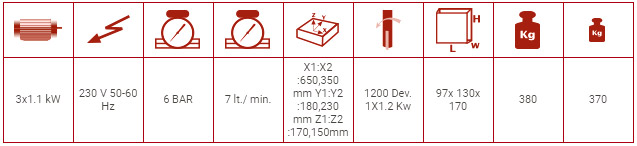

Specifications
